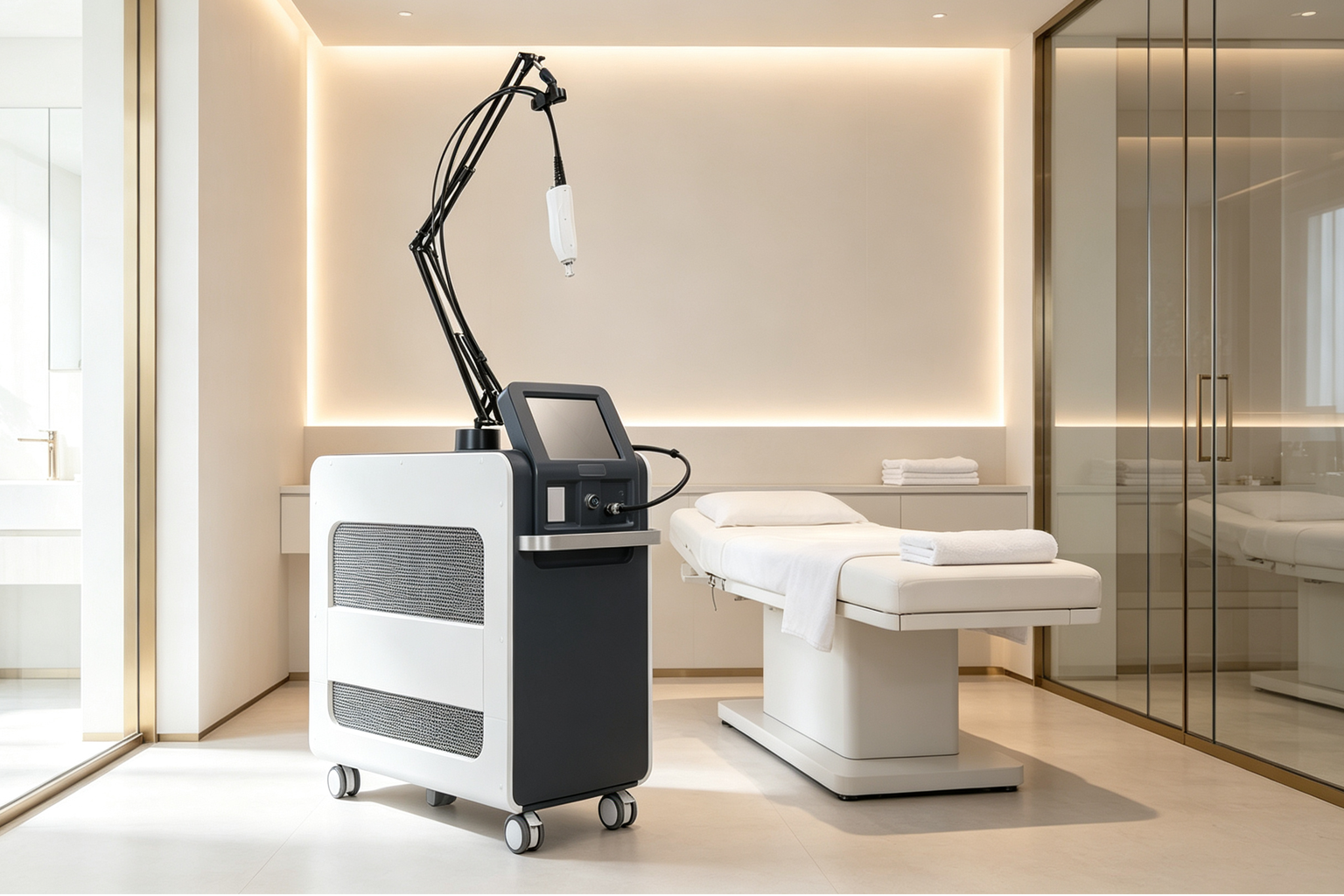

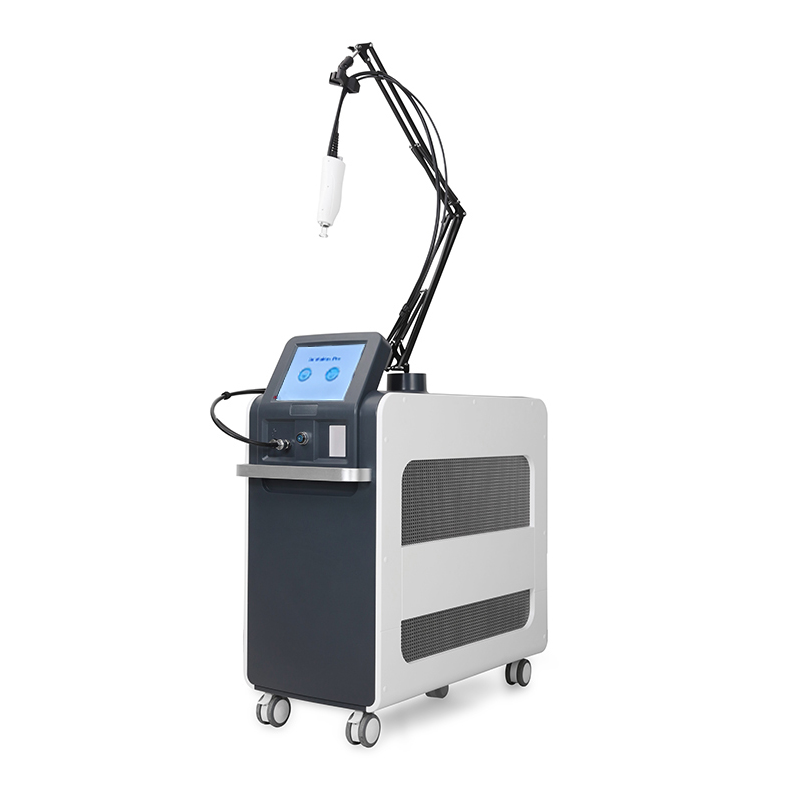

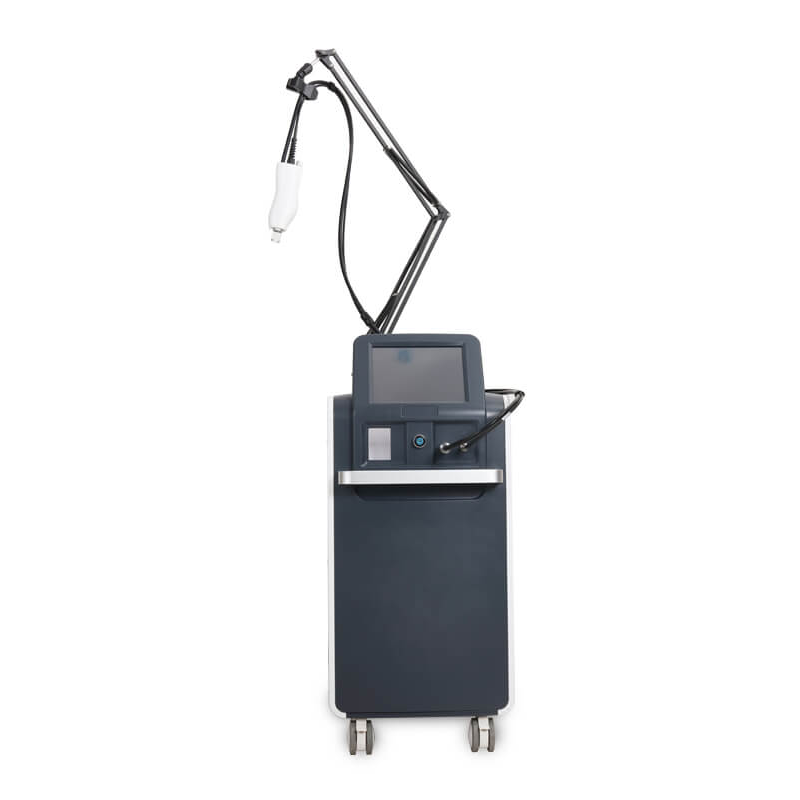

Alexandrite laser 755nm + ND yag 1064nm hair removal
Alexandrite laser 755nm ND yag laser machine using optical fiber laser to work on melanin. For hair removal the laser energy will directly work on hair follicle. The laser work on melanin to destroy hair follicles, after 3-5 times treatment, hair will not growth any longer.
755nm Alexandrite Laser for hair‑removal adopts optical fiber for laser transmission. The transformer‑equipped cable minimizes energy loss.

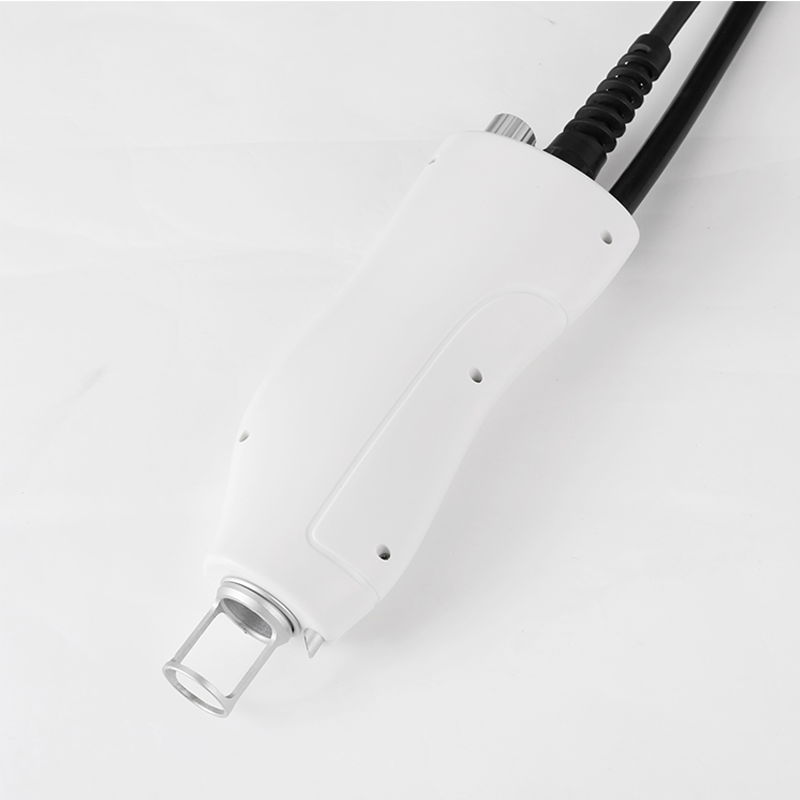

Different from traditional IPL hair‑removal devices, its treatment handpiece delivers performance comparable to diode lasers. It requires no skin epidermis freezing and pre‑treatment waxing is unnecessary.
The Alexandrite laser (Nd:YAG laser) penetrates into deeper skin layers. It supports adjustable spot size and selectable pulse duration. The same handpiece and cartridge work for both small and large treatment areas. This Nd:YAG hair removal system features only one handpiece and one cartridge. Its fixed wavelength ensures superior stability and delivers optimal hair‑removal outcomes.

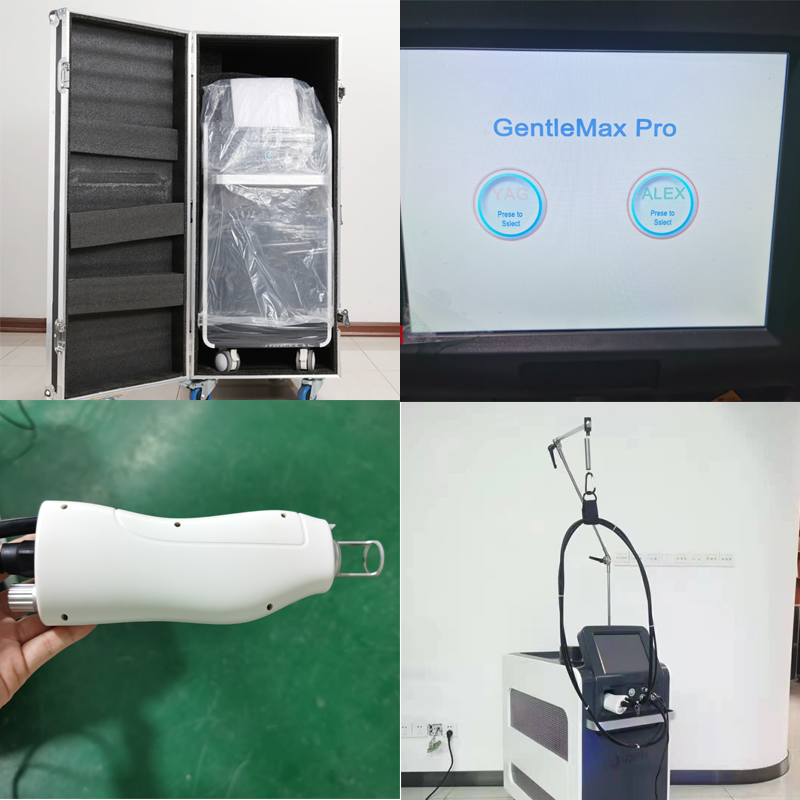

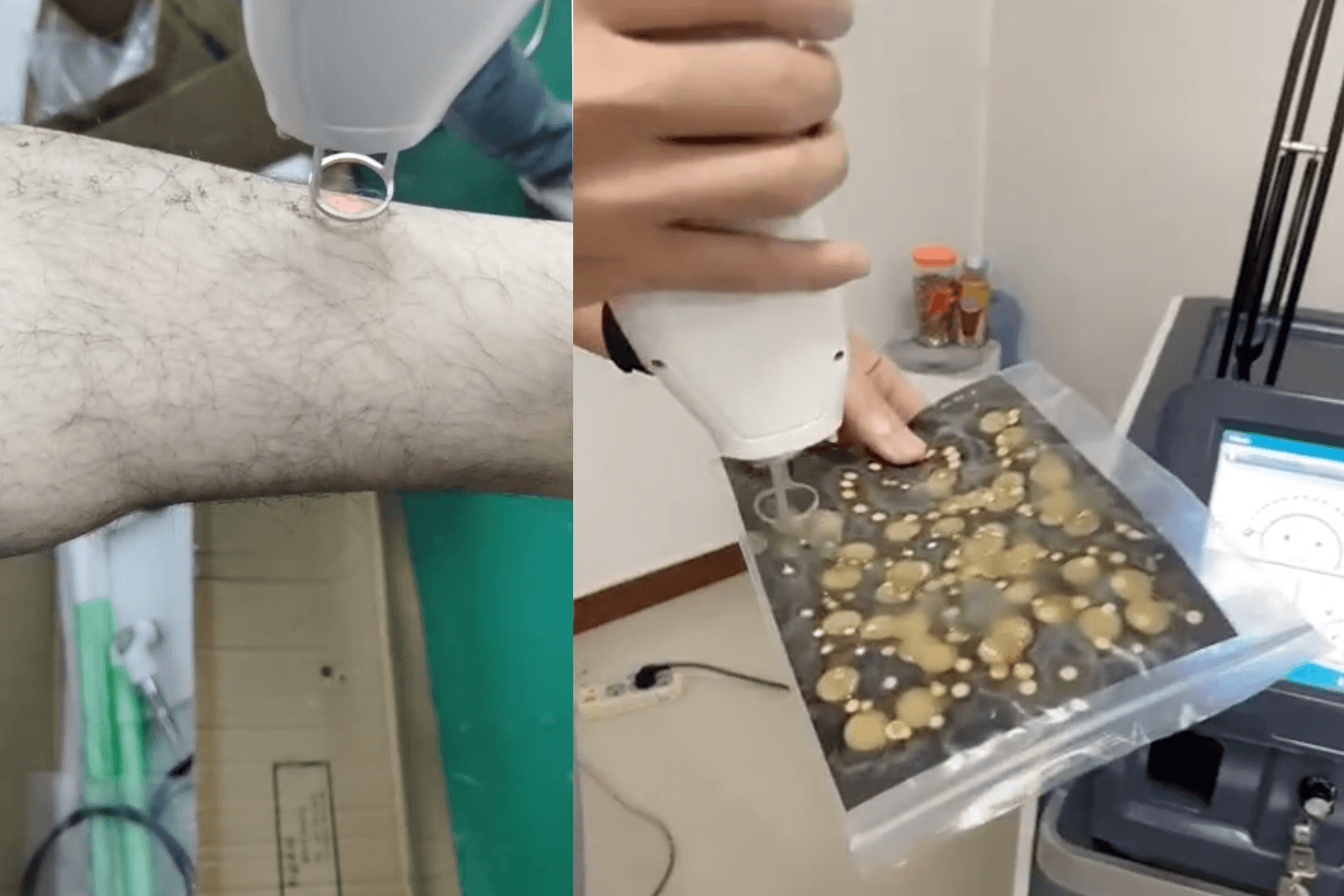

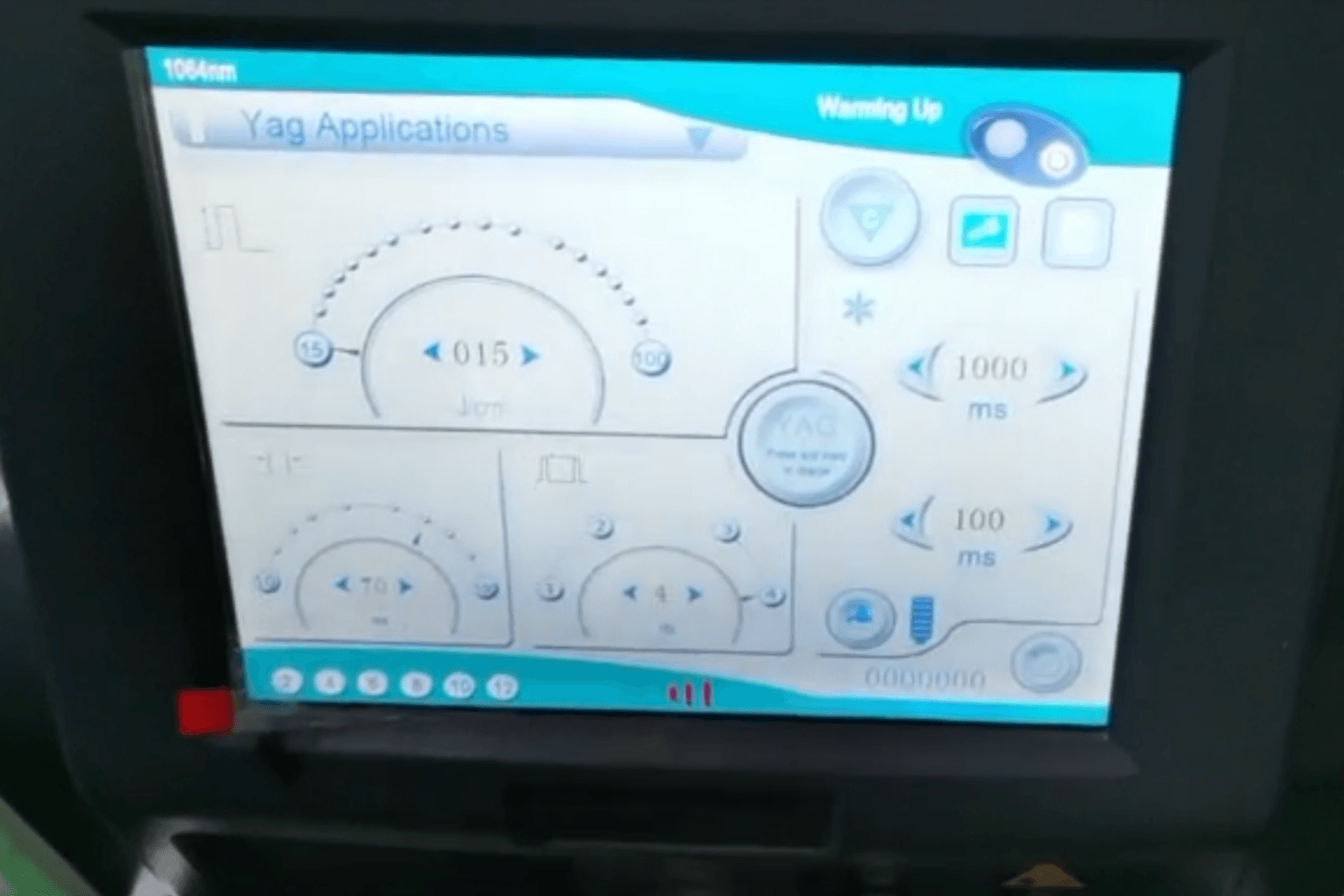

Real image
Below image only cut size which taking by phone. Do not edit or changing by AI. If need more real image and video could ask us provide.

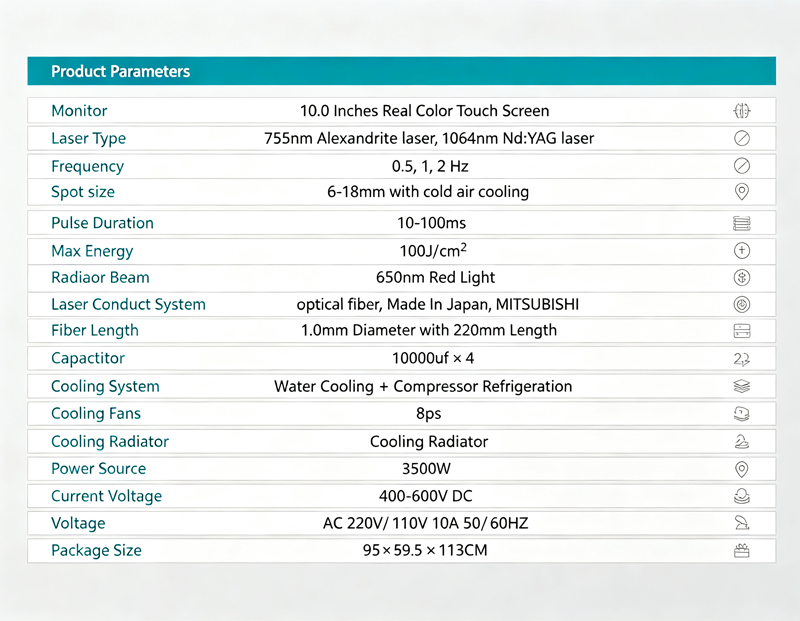

Alexandrite laser 755nm specification
Item No.:HR001
Monitor: Monitor 10 inches digital real color LCD
Interface: Interface Touch
Control System: Control system single chip
Handpiece/spot size: 8-18mm spot size, cold air cooling
Wave length: 1064nm & 755nm
Cooling system: water cooling 5-25 ℃ auto control
Energy:
1064nm-100J
755nm – 60J
Pulse width: 5-100ms
Pulse ammount: 1-5T
Pulse Interval: 5-100ml
Pulse frequency: 0.25Hz, 0.5Hz, 1Hz, 2Hz
Pilot beam: 520nm green laser
power supply part: 3680 wattes with double IGBT
IGBT part: Made in Japan
Capacitance capacity: 500uf*8=40000uf
In charge voltage: 400-600V DC
Capacitance: 1000uf*8
Laser board:
lamp: 100*176*10nm Made in UK
Lamp amounts: 2 pieces
Rod: Alexandrite Rod: 755nm
LBO: PP-LN
Wavelength output: 755nm
Fiber:
laser fiber: Made in Japan, MITSUBISHI
Fiber specification: 1mm diameter with 2200mm length
Size: W40 * L 80 * H115cm
N.W: 95kg

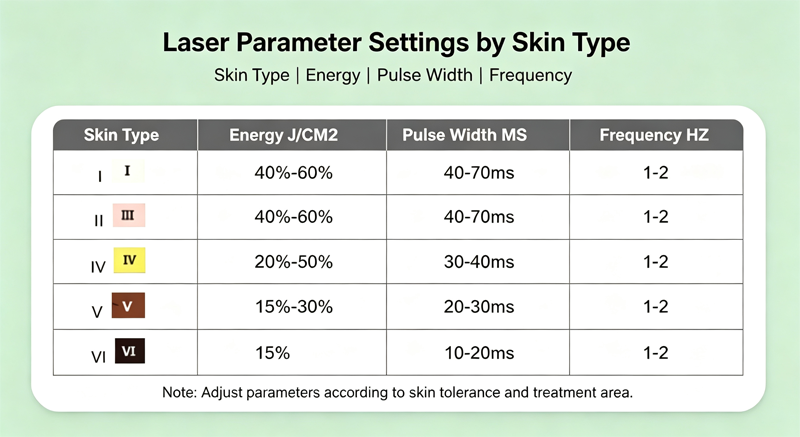

Application
Very dark skin if using this machine need to start with very low energy. Misunderstand operation easy to cause skin burned. Mostly we don’t recommend very dark skin using any laser beauty machine because difficult to reaching target treatment benefits.
Alexandrite laser Cooling system
This laser machine work with water cooling + compressor regrigeration + air cooling ( 8 fans )
More hair removal machine
808nm hair removal is one of the most professional hair removal wavelength. It is touching skin and need to use gel to get skin get averange energy transfer. Comparing with alexandrite machine could reduce skin painful but less result. May do some more times treatment.
OPT/DPL hair removal machine is using multi‑wavelength but not specific wavelength such as 755nm, 808nm or 1064nm.
OEM/ODM
We could provide machine logo customized. More laser beauty machine such as diode laser, IPL machine and fotona 4D all supported.
