Laser hair removal one machine working with two different wavelength and working model to match hair remove and pigment remove benefits. Both E-light and OPT are using specific wavelength to work on melanin to cause it blasting to get treatment benefits.
On hair removal the wavelength work on melanin under hair follicle. It is “kill” hair follicle making it lose activity and shrivel, the hair will not growth any more.
E-light have RF work together to making melanin blasting and shrink collagen fiber at the same time. The wavelength also work for skin lighting and acne remove. Plus LED photon machine and mesotherapy gun get better result.
Laser hair removal

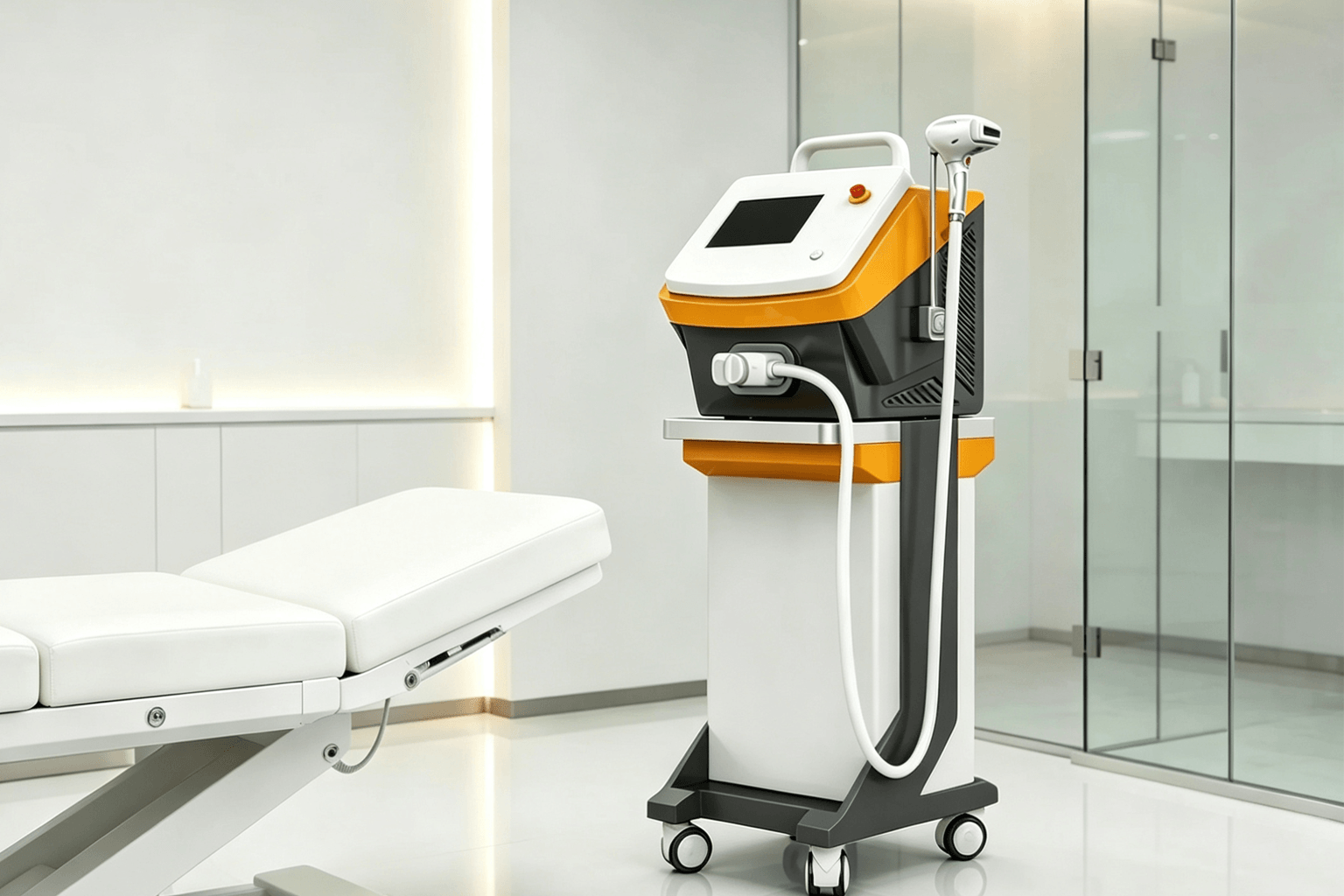

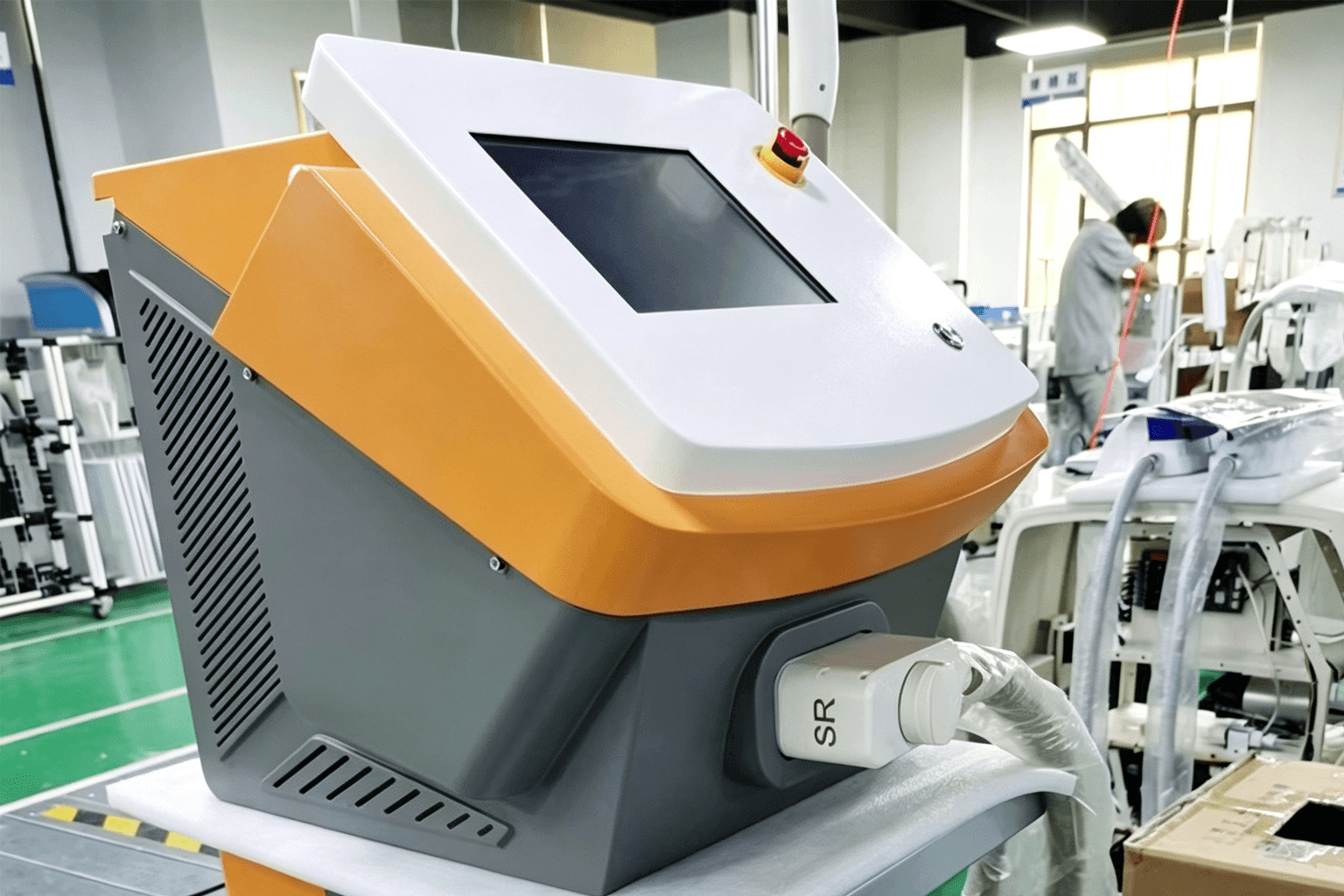

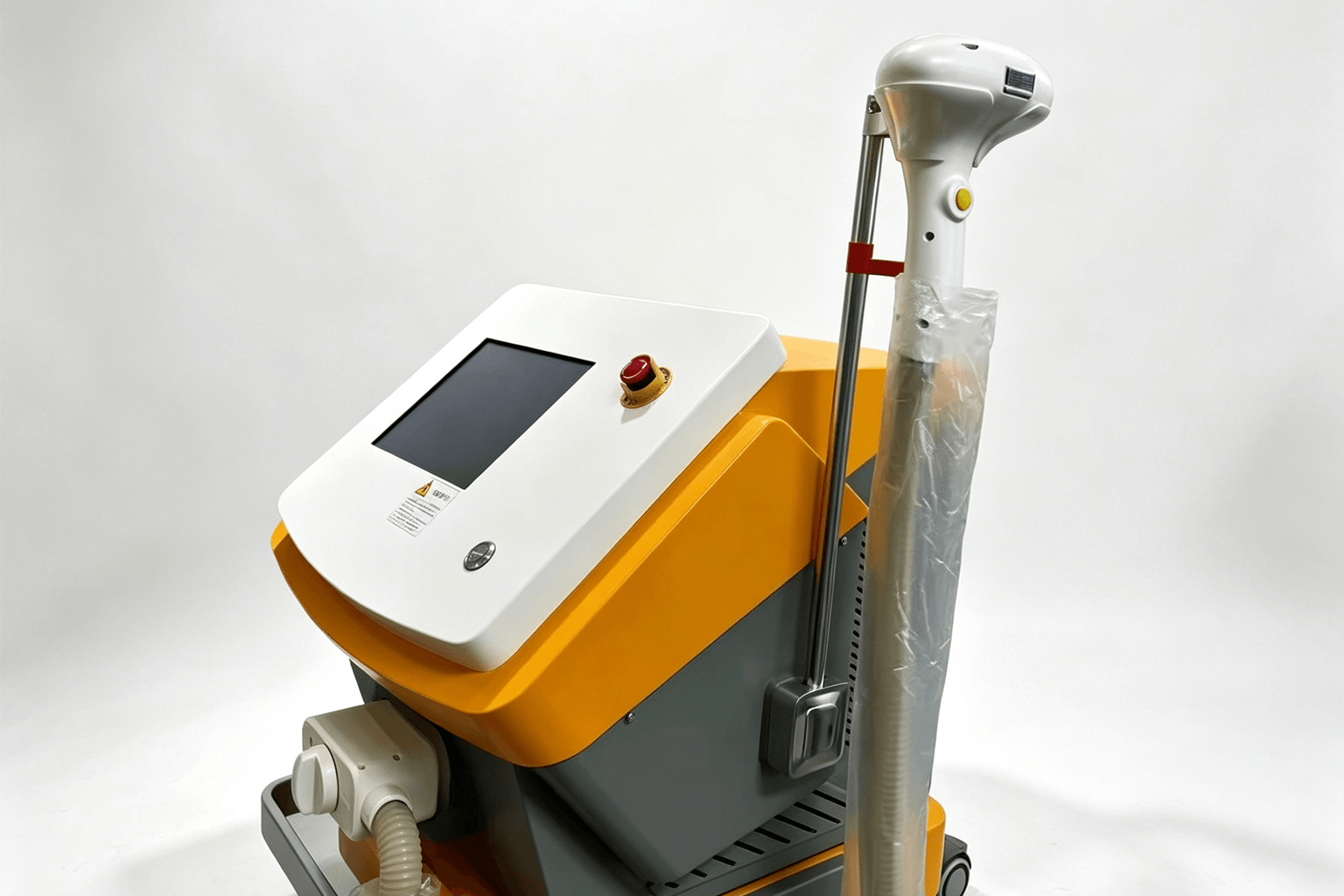

Machine and trolley could be seperate for transport so that reduce cost. OPT and E-light in two different setting page and energy setting.
| wavelength | 530-1200nm/640-1200nm |
| Energy Density | IPL 1-50 J/cm², RF 1~25 J/cm³, OPT 1-50 J/cm² |
| Pulse number | 1-5 |
| Pulse width | E-light: 50-2500ms；OPT: 1~10 ms |
| Pulse delay | E-light: 1~5s |
| Repeat circle | 1-5s |
| Spot size | DY:10*50mm/XY:8*25mm |
| Cooling system | Semiconductor refrigeration, closed cycle forced water cooling, air-cooled heat exchange |
| Input power | AC 110V/220V 50 Hz/60 Hz |
| Packing size | Wooden case115*62*64cm |
| Weight | G.W67kg, N.W55kg |
| Machine power | 1500w |
OPT hair removal
It is special for hair remove. Higher energy usually means better result. But Higher energy also cause more painful. In order to get good result, mostly we recommend starting by energy 20, General people could capable of withstanding an energy of 24 J.Before hair removal treatment do not have to shave off the hair, but after one time treatment, if wiping with a face towel can pick up shed hair or fibers. In next few days could see hair drops as well.
After treatment skin main have redness and swelling, keep gel on skin 20-30 minutes and then cleaning and using clam down mask. THe redness and swelling will be disappeared.
E-light skin rejuvation
E-light for skin lighting, skin rejuvenation, pigment remove, acne remove and vascular remove.
- Skin Rejuvenation & Pigment Removal
Based on the selective light absorption and pyrolysis principle of hemoglobin and chromophores, target tissues are heated and necrotized without harming normal skin, especially the epidermis, to achieve therapeutic effects. - Acne Treatment
Short-wavelength intense light kills *Propionibacterium acnes*. Combined with red light, infrared light and radiofrequency current, it suppresses sebaceous gland activity, fades pigmentation and stimulates deep collagen regeneration for remarkable acne removal results. - Wrinkle Reduction
IPL works together with RF to raise the temperature of the skin dermis, activate collagen fibers, so as to smooth wrinkles and lift skin.

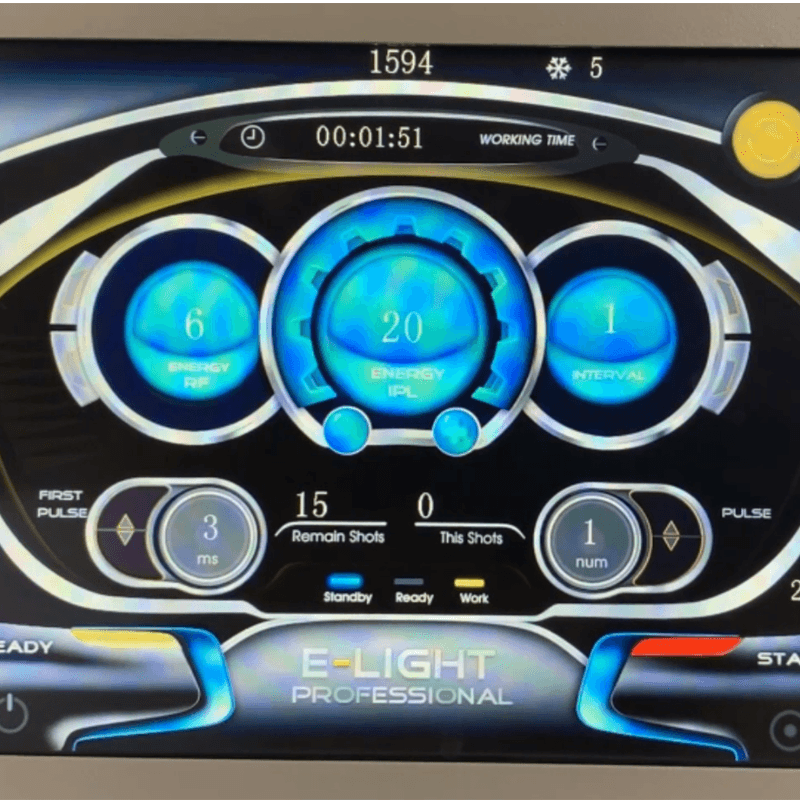

| Specification/ Item | model | J/cm² | J/cm² | S INTERVAL | FIRST PULSE | PULSE | Treatment target |
| ENERGY RF | ENERGY IPL | ms | num | ||||
| Skin rejuvenation | E-light | 3-8 | 10-15 | 1 | 1 | 1 | Redness after treatment using ice or cooling mask 10 minutes. |
| Pigment remove | 3-8 | 13-18 | 1 | 1 | 1 | After treatment skin epidermis gets pigment color deeper, using ice or cooling mask 10 minutes. | |
| Vascular remmove | 3-8 | 8-13 | 1 | 1 | 1 | redness solidification or color | |
| Acne Remove | 3-8 | 15-20 | 1 | 1 | 1 | pustule acne should cleaning first,using ice or cooling mask 10 minutes. |

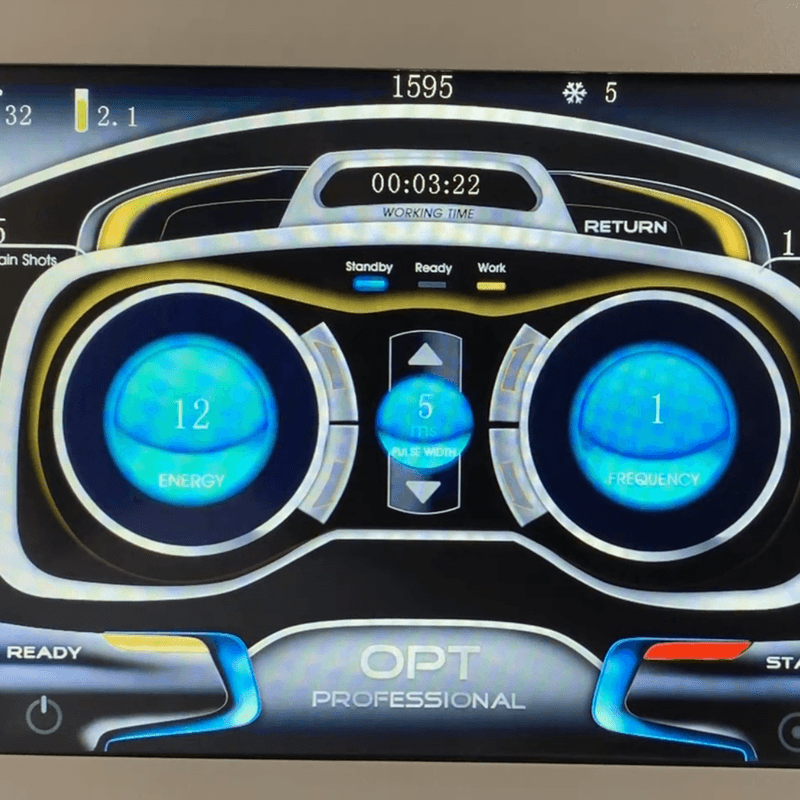

| Item Spec. | Model | Skin rejuvenation | Acne remove | Vascular remove | Acne remove |
| ENERGY | OPT | 8-18 | 9-19 | 4-17 | 10-20 |
| ms PULSE WIDTH | 1-2 | 1-2 | 1-2 | 1-2 | |
| Hz FREQUENCY | 2-4 | 1-3 | 2-4 | 3-5 |
Beload for general treatment setting reference.
| Treatment | wavelength | operation | After care | advise |
| Skin rejuvenation | SR/530nm | E-light on whole face 2-3 times, OPT 3-4 times | Right energy setting on E light could feel a little tottenham sense, OPT would feel warming. After treatment skin become red, touching would feel warm. | |
| Acne remove | SR/530nm | E-light on whole face 2-3 times, | Could using ice to clam down. Any wrong working cause machine burn could using ice cooling and then use EGF to repair. | |
| OPT 3-4 times | void sunshine, applying moistening mask 3 days. | |||
| Pigment remove | SR/530nm | Melanin on skin epidermis going deeper, about 7 days disappear | ||
| Vascular remove | SR/530nm | redness blood vessel slowly broken, color a little darker |
Cooling system
It is using semiconductor refrigeration+ closed cycle forced water cooling+air-cooled heat exchange. Behind the machine have water tank, after receive machine should filling water first. Each a half month should replace one time water or easy cause machine burn.

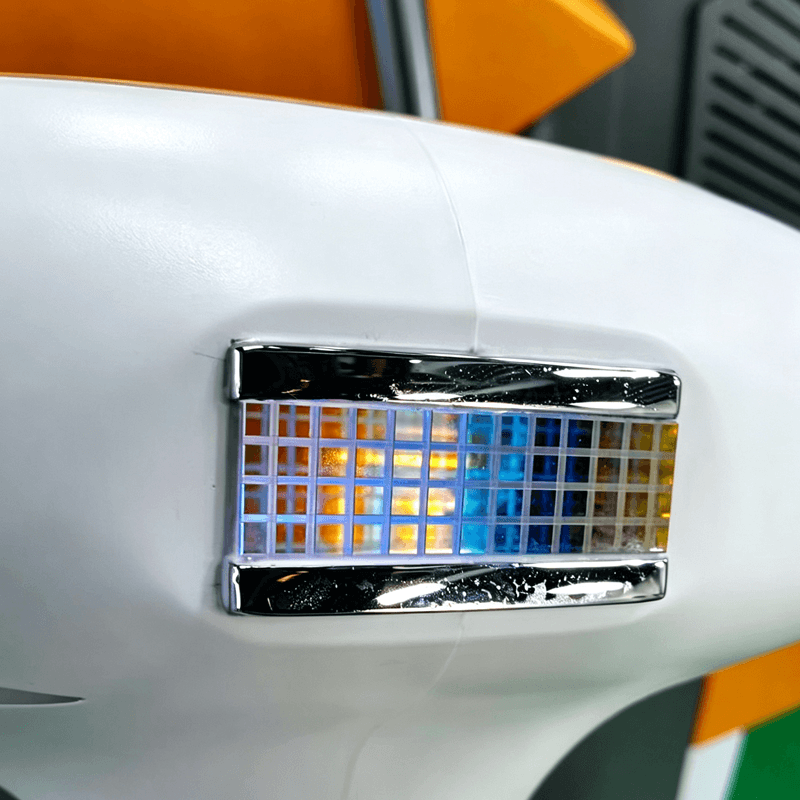

The handle frozen during treatment so that avoid skin burn. The gel is heat conduction medium also for skin protection.
Treatment circle
Hair growth 28 days as one circle. So each month could do one time treatment. Only hair exist the laser hair removal could work on melanin and making hair follicle broken so that hair stop growth. Hair growth includes the anagen, telogen, and catagen phases. so full treatment including 3-5 times to get completely hair removel.
Skin usually taking 44 days as one circle, 50-60 days could do one time treatment if for pigment remove.
OEM/ODM
Same machine we have vertical version and different appearance. Also have more appearance for your reference so that for easy OEM/ODM customized. Also have black & white color.
Warranty & delivery
Laser beauty machine all provide 3 years warranty for main machine and 1 year warranty for the handle. Main machine and trolley will packed into two different package and protected by wooden case.
